Corrupted blocks in HDFS

Ambari on one of my test environments was warning me about under replicated blocks in the cluster:

ambari - under replicated blocks

Opening the Namenode web UI (http://test01.namenode1:50070/dfshealth.html#tab-overview) painted a different picture:

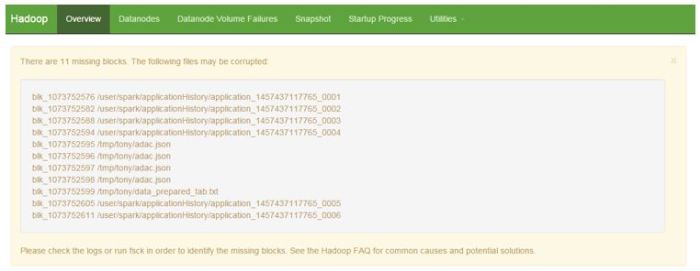

namenode web ui - overview information about blocks

11 blocks are missing which might lead to corrupted files in the cluster.

Running file check on one of the files:

sudo -u hdfs hdfs fsck /tmp/tony/adac.json

The output:

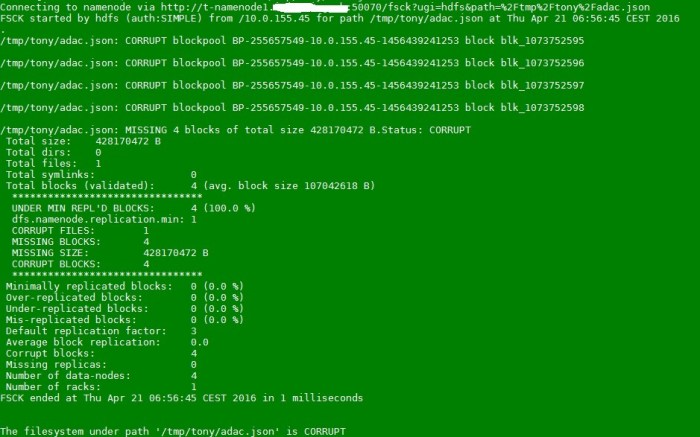

fsck - corrupted file

The output reveals that the file is corrupted, was split in 4 blocks and is replicated only once on the cluster.

Nothing to do but to permanenetly delete the file:

sudo -u hdfs hdfs dfs -rm -skipTrash /tmp/tony/adac.json

Ambari wil now show 4 blocks less in the Under Replicated Blocks widget. Refreshing the Namenode web UI will also show that the corrupted blocks are removed.

Where are HDFS files in Linux?

In this post, I take an example file in HDFS, run filecheck to find locations of file’s block replications, file’s block pool ID and block ID. This information will help me locate the file’s block on local filesystem on one of the DataNodes.

In second part, I alter the file on local filesystem (from HDFS standpoint, it is a block). This results in Namenode defining the block as corrupted and new replication is created on another DataNode.

HDFS

Show details of the example file in HDFS:

hadoop fs -ls  /tmp/test_spark.csv

Output:

-rw-r–r–   3 ubuntu hdfs   56445434 2016-03-06 18:17 /tmp/test_spark.csv

Run tail on the file:

hadoop fs -tail  /tmp/test_spark.csv

The output is this:

804922,177663.1,793945.2,”factor_1_10000″,”factor_2_10000″
93500,378660.1,120037.2,”factor_1_10000″,”factor_2_10000″
394490,149354.1,253562.2,”factor_1_10000″,”factor_2_10000″
253001,446918.1,602891.2,”factor_1_10000″,”factor_2_10000″
196553,945027.1,97370.2,”factor_1_10000″,”factor_2_10000″
83715,56758.1,888537.2,”factor_1_10000″,”factor_2_10000″
593831,369048.1,844320.2,”factor_1_10000″,”factor_2_10000″
721077,109160.1,604853.2,”factor_1_10000″,”factor_2_10000″
383946,111066.1,779658.2,”factor_1_10000″,”factor_2_10000″
461973,695670.1,596577.2,”factor_1_10000″,”factor_2_10000″
70845,360039.1,479357.2,”factor_1_10000″,”factor_2_10000″
813333,839700.1,568456.2,”factor_1_10000″,”factor_2_10000″
967549,721770.1,998214.2,”factor_1_10000″,”factor_2_10000″
919219,466408.1,583846.2,”factor_1_10000″,”factor_2_10000″
977914,169416.1,412922.2,”factor_1_10000″,”factor_2_10000″
739637,25221.1,626499.2,”factor_1_10000″,”factor_2_10000″
223358,918445.1,337362.2,”factor_1_10000″,”factor_2_10000″

I run filecheck:

hdfs fsck /tmp/test_spark.csv -files -blocks -locations

The output is:

Connecting to namenode via http://w-namenode1.domain.com:50070/fsck?ugi=ubuntu&files=1&blocks=1&locations=1&path=%2Ftmp%2Ftest_spark.csv
FSCK started by ubuntu (auth:SIMPLE) from /10.0.XXX.75 for path /tmp/test_spark.csv at Sun Mar 06 18:18:44 CET 2016
/tmp/test_spark.csv 56445434 bytes, 1 block(s):  OK
BP-1553412973-10.0.160.75-1456844185620:blk_1073741903_1079 len=56445434 repl=3 [DatanodeInfoWithStorage[10.0.XXX.103:50010,DS-1c68e4c7-d424-47e8-b7cc-941198fe2415,DISK], DatanodeInfoWithStorage[10.0.XXX.105:50010,DS-26bc20ee-68d8-423b-b707-26ae6e986562,DISK], DatanodeInfoWithStorage[10.0.XXX.104:50010,DS-76aaea28-2822-4982-8602-f5db3c47d3fd,DISK]]

Status: HEALTHY
Total size:    56445434 B
Total dirs:    0
Total files:   1
Total symlinks:                0
Total blocks (validated):      1 (avg. block size 56445434 B)
Minimally replicated blocks:   1 (100.0 %)
Over-replicated blocks:        0 (0.0 %)
Under-replicated blocks:       0 (0.0 %)
Mis-replicated blocks:         0 (0.0 %)
Default replication factor:    3
Average block replication:     3.0
Corrupt blocks:                0
Missing replicas:              0 (0.0 %)
Number of data-nodes:          4
Number of racks:               1
FSCK ended at Sun Mar 06 18:18:44 CET 2016 in 1 milliseconds
The filesystem under path ‘/tmp/test_spark.csv’ is HEALTHY

The file is stored in one block ( dfs.blocksize is by default 134217728).
Replication factor is 3 (default) and the block can be found on the following DataNodes: 10.0.XXX.103, 10.0.XXX.104, 10.0.XXX.105

BP-1553412973-10.0.160.75-1456844185620 - Block Pool ID

blk_1073741903_1079 - Block ID

Linux

Now I can look for the file in Linux.

I connect to one of the datanodes that was given in the output of hadoop filecheck command.

ssh -i .ssh/key 10.0.XXX.103

Property dfs.datanode.data.dir in hdfs-default.xml, if you are manually administrating the cluster, or, in Ambari, HDFS -> Configs -> Settings -> DataNode -> DataNode directories, tells us where on the local filesystem the DataNode should store its blocks.

Default is /hadoop/hdfs/data.

If I list details of the file:

sudo -u hdfs ls -l /hadoop/hdfs/data/current/BP-1553412973-10.0.160.75-1456844185620/current/finalized/subdir0/subdir0/blk_1073741903

The output is the following:

-rw-r–r– 1 hdfs hadoop 56445434 Mar  6 18:17 /hadoop/hdfs/data/current/BP-1553412973-10.0.160.75-1456844185620/current/finalized/subdir0/subdir0/blk_1073741903

The size of the file is the same as when listing the file using hadoop fs -ls earlier (one block for this file).

Now I run tail on this file:

sudo -u hdfs tail /hadoop/hdfs/data/current/BP-1553412973-10.0.160.75-1456844185620/current/finalized/subdir0/subdir0/blk_1073741903

Result:

721077,109160.1,604853.2,”factor_1_10000″,”factor_2_10000″
383946,111066.1,779658.2,”factor_1_10000″,”factor_2_10000″
461973,695670.1,596577.2,”factor_1_10000″,”factor_2_10000″
70845,360039.1,479357.2,”factor_1_10000″,”factor_2_10000″
813333,839700.1,568456.2,”factor_1_10000″,”factor_2_10000″
967549,721770.1,998214.2,”factor_1_10000″,”factor_2_10000″
919219,466408.1,583846.2,”factor_1_10000″,”factor_2_10000″
977914,169416.1,412922.2,”factor_1_10000″,”factor_2_10000″
739637,25221.1,626499.2,”factor_1_10000″,”factor_2_10000″
223358,918445.1,337362.2,”factor_1_10000″,”factor_2_10000″

Output of tail matches the output of tail ran with hadoop fs command.



Changing the file in Linux

If I open this file for editing:

sudo -u hdfs vi /hadoop/hdfs/data/current/BP-1553412973-10.0.160.75-1456844185620/current/finalized/subdir0/subdir0/blk_1073741903

and change it. The file disappears from the parent folder.



Filecheck in HDFS

Now I run filecheck on the same file again:

hdfs fsck /tmp/test_spark.csv -files -blocks -locations

The output is the following:

Connecting to namenode via http://w-namenode1.domain.com:50070/fsck?ugi=ubuntu&files=1&blocks=1&locations=1&path=%2Ftmp%2Ftest_spark.csv
FSCK started by ubuntu (auth:SIMPLE) from /10.0.XXX.75 for path /tmp/test_spark.csv at Sun Mar 06 18:34:41 CET 2016
/tmp/test_spark.csv 56445434 bytes, 1 block(s):  OK

BP-1553412973-10.0.160.75-1456844185620:blk_1073741903_1079 len=56445434 repl=3 [DatanodeInfoWithStorage[10.0.XXX.102:50010,DS-db55f66a-e6b6-480a-87bf-2053fbed2960,DISK], DatanodeInfoWithStorage[10.0.XXX.105:50010,DS-26bc20ee-68d8-423b-b707-26ae6e986562,DISK], DatanodeInfoWithStorage[10.0.XXX.104:50010,DS-76aaea28-2822-4982-8602-f5db3c47d3fd,DISK]]

Status: HEALTHY
Total size:    56445434 B
Total dirs:    0
Total files:   1
Total symlinks:                0
Total blocks (validated):      1 (avg. block size 56445434 B)
Minimally replicated blocks:   1 (100.0 %)
Over-replicated blocks:        0 (0.0 %)
Under-replicated blocks:       0 (0.0 %)
Mis-replicated blocks:         0 (0.0 %)
Default replication factor:    3
Average block replication:     3.0
Corrupt blocks:                0
Missing replicas:              0 (0.0 %)
Number of data-nodes:          4
Number of racks:               1
FSCK ended at Sun Mar 06 18:34:41 CET 2016 in 1 milliseconds
The filesystem under path ‘/tmp/test_spark.csv’ is HEALTHY

File is still replicated 3 times on 3 DataNodes, but this time on DataNodes 10.0.XXX.102,  10.0.XXX.104, 10.0.XXX.105.

The output shows that one replication is not on datanode with IP 10.0.XXX.103 anymore. That was the datanode I connected to temper with the file.

NameNode has identified that the block is corrupted and has created a new replica of the block.
